            STLB35

            Nominal size DN: 15 ~ 25

            Connection: butt welding, flange
            Nominal pressure PN: PN110
            Pressure difference range: MPa: 0.01 to 6.5
            PMA/TMA PMa/℃ : 6.5/427
            Shell material: WC6


            Download STLB35
            Features
            1. The float drive lever automatically adjusts the opening of the drainage seat hole, and the work is continuous, which can realize the continuous drainage of small volume and large capacity.

            2. Good sealing performance, low air leakage rate, significant energy saving effect.

            3. External manual air exhaust device can prevent air blockage; Built-in labyrinth steam unlocking device to prevent steam lock.

            Usage: Mainly used for steam pipe network and steam heating equipment automatic air blocking drainage.

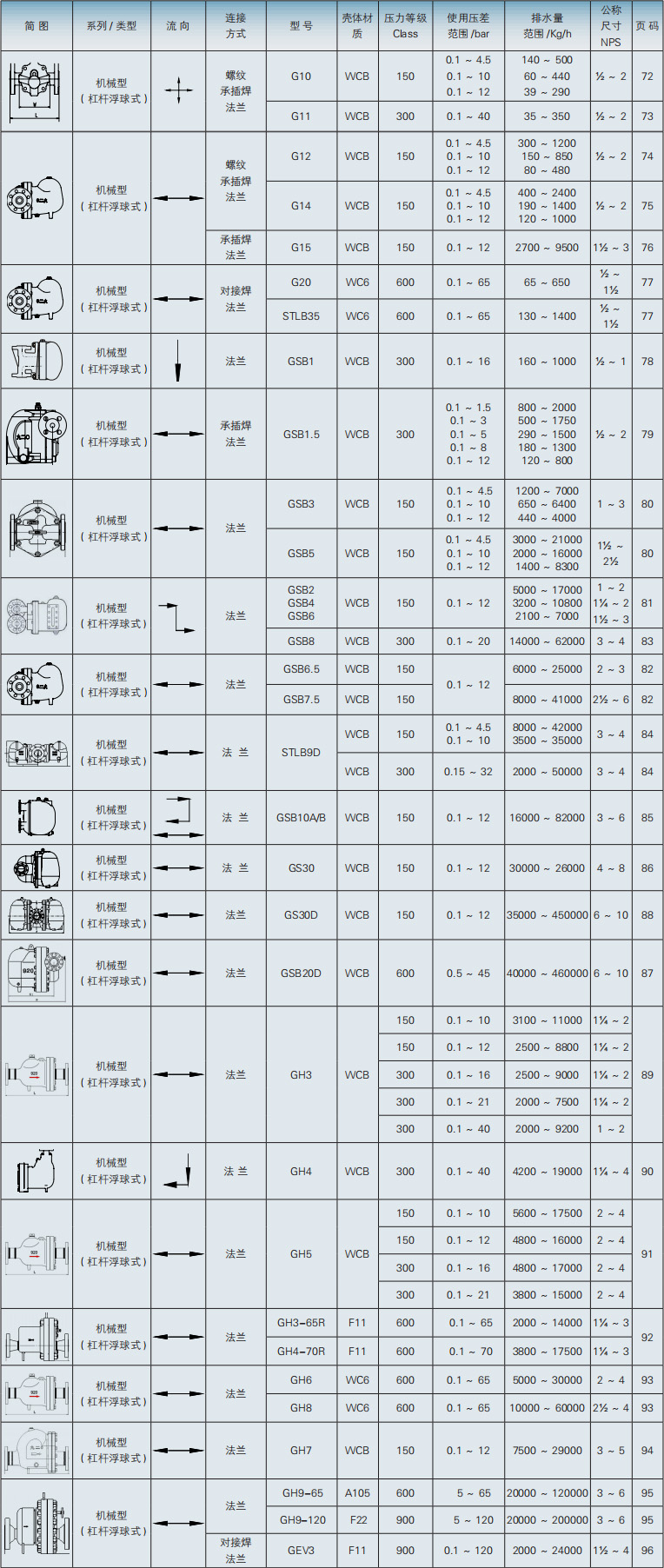

            選型速查表
