            Vertical natural gas traps Model: HLTS series

            Nominal pressure(PN):16~40

            Working pressure difference (Mpa): 0.01~0.8, etc

            Displacement (m3/h): 8~20

            Connection: flange, thread

            Nominal size (DN): 25~80 etc

            Operating temperature: normal temperature

            Download Vertical natural gas traps Model: HLTS series
            Features

            1. Fully automatic continuous operation, discharge when there is water, automatic shutdown when there is no water, and the discharge rate of sedimentary water (liquid) is 100%.

            2. Double guidance, high action reliability, no gas leakage during operation.

            3. The internal parts are all made of stainless steel, which has a long service life.

            4. Good cleaning performance, wear resistance and corrosion resistance.

            5. Easy installation, stable operation and convenient sewage discharge.

            Application: It is suitable for the working condition that can automatically separate the gas-liquid two-phase medium with a specific gravity difference greater than 0.3, and is conducive to the recycling of the liquid-phase medium.

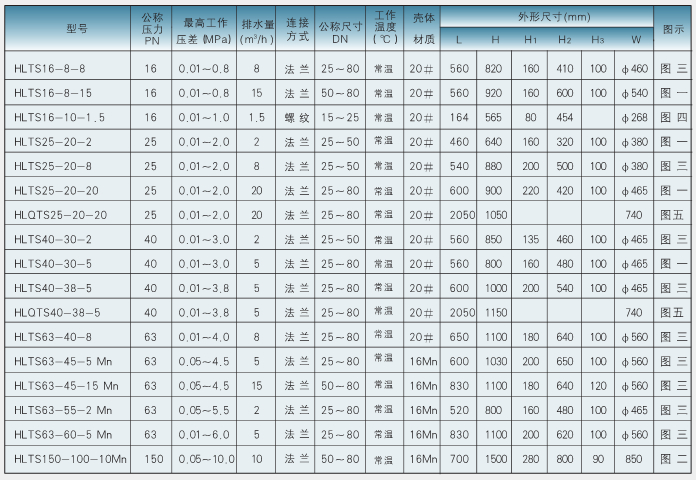

            Selection cheat sheet
