            P41(2)X-10 quick exhaust valve

            Working medium: clean water

            Operating temperature: normal temperature

            Working pressure: 1.0MPa

            Nominal pressure PN: PN10

            Body: HT200

            Float: 304 stainless steel

            Body strength pressure: 1.6MPa

            Air seal test pressure: 0.05MPa~1.6MPa no water leakage

            Download P41(2)X-10 quick exhaust valve
            Features

            (1) It can remove the gas in the pipeline, reduce the resistance, and save energy.

            (2) The exhaust capacity is many times that of the ordinary double-port exhaust valve.

            (3) When the pipeline is under negative pressure, this product can quickly and automatically suction to prevent the pipeline from making an exception.

            (4) The float is stainless steel, which has a long service life, safe and reliable.


            Product Structure:

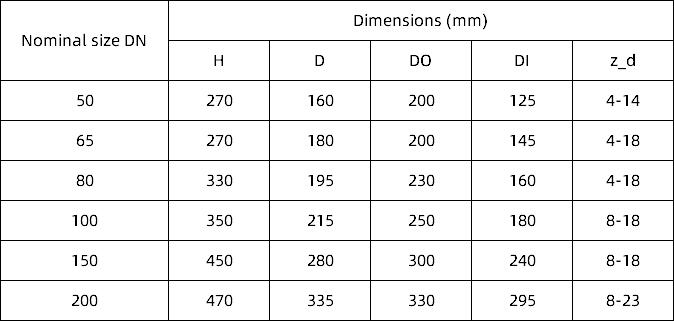

            Main Dimensions:

            P41_3en

            Selection cheat sheet
